| We are professional packing
machine, register packing
machine manufacturer and factory
in China. We can produce blow
packing machine, register
packing machine according to
your requirements. More types of
packing machine, register
packing machine wanted, please
contact us right now! |
 1.
DPP-250FI Aluminum/Pvc
Register Packing Machine
(al/pvc) |
|
Product
Information: |
packing
machine, register packing
machine
DPP-250FI Programmed Aluminium
Plastic Register Packing Machine
with advanced performance,
simple operation, high output is
the latest improved equipment in
our company. It is the best
ideal packing Equipment for
large and medium-sized
pharmaceutical plant, health
care factory and food industry.
Features:
1) Adopts import frequency
transformers to control switch
for longer
service life
2) The die is located with
location pin preciously and easy
to replace
3) Adjustable stroke, pressed
forming, registering-heating,
upper and
lower moir, heat-sealing
4) Completed automatic forming,
feeding, heat-sealing,
mark-pressing,
batch number printing and
punching
5) Adopts manual wheel to adjust
the working position of forming,
pressing and punching
6) Made of stainless steel both
inside and outside of the
equipment
7) Can be dismantled into parts
so that it can be carried into
elevators
and workshops
8) The photoelectric celebrating
unit is equipped to achieve the
function
of celebrating the graphics and
texts of printing to raise the
grade
of completed products
Main technical
parameters:
1) Punch frequency: 20-40times/min
(frequency control)
2) AL/PL: (80 x 57mm): 40times/min
4sheets/times
3) Max shape area and depth: 250
x 120 x 20 (35mm)
4) Adjustable stroke: 30-120mm (according
to requirement to design)
5) Total power: 5.7kW 380V 50Hz
(220V 60Hz)
6) Main motor: 1.5kW
7) Power of step motor: 1 kW

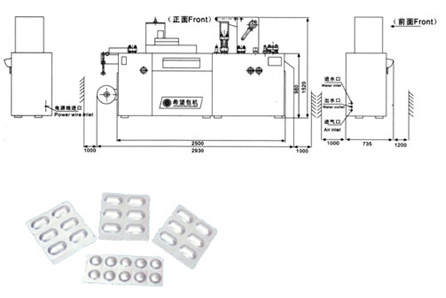

8) Overall dimensions (L x W x
H): 2,660 x 700 x 1,560mm
9) Weight: 1,500kg
10) Air compressor ¡Ý0.6m3/min
Outer
packing:
Split packing: 1,400 x 760 x
1,800mm x 2
Box dimensions: 2,800 x 760 x
1,800mm
|
2.
DPP-250FI Al/al Packing
Machine |
Features:
packing machine, register
packing machine
1) Adopts import frequency
transformers to control switch
for longer
service life
2) The die is located with
location pin preciously and easy
to replace
3) Adjustable stroke, pressed
forming, registering-heating,
upper and
lower moir, heat-sealing
4) Completed automatic forming,
feeding, heat-sealing,
mark-pressing,
batch number printing and
punching
5) Adopts manual wheel to adjust
the working position of forming,
pressing and punching
6) Adopts man-machine interface
and transducer detecting
together with
eliminating device (OMROM
transducer)
7) Made of stainless steel both
inside and outside of the
equipment
8) Can be dismantled into parts
so that it can be carried into
elevators
and workshops
Main technical
parameters:
1) Punch frequency:
20-40times/min (frequency
control)
2) AL/PL (80 x 65mm):
40times/min, 3sheets/time
3) Max shape area and depth: 250
x 120 x 20mm
4) Adjustable stroke: 30-120mm
(according to requirement to
design)
5) Total power: 5.7kW 380V 50Hz
(220V 60Hz)
6) Main motor: 1.5 kW
7) Overall dimensions (L x W x
H): 2,660 x 700 x 1,560mm
8) Weight: 1,500kg
10) Air compressor ¡Ý0.6m3/min
Outer
packing:
Split packing: 1,400 x 760 x
1,800mm x 2
Box dimensions: 2,800 x 760 x
1,800mm
|
DPP-140F
Al/pvc ( al/al) |
Features:
packing machine, register
packing machine
1) Adopts import frequency
transformers to control switch
for longer
service life
2) The die is located with
location pin preciously and easy
to replace
3) Adjustable stroke, pressed
forming, registering-heating,
upper and
lower moir, heat-sealing
4) Completed automatic forming,
feeding, heat-sealing,
mark-pressing,
batch number printing and
punching
5) Adopts manual wheel to adjust
the working position of forming,
pressing and punching
6) Made of stainless steel both
inside and outside of the
equipment
Main
technical parameters:
1) Punch frequency: 6-40 (times/min)
2 (sheets/time)
2) Capacity:
100,000-120,000pills/h
3) Standard sheet: 80 x 57mm
4) Adjustable range of stroke:
40-110mm
5) Packing material:
a) PVC 140mm x 0.25mm, 140mm x
0.14mm
b) PTP 140mm x 0.02mm
6) Air compressor ¡Ý0.3m3/min
1.5kW
7) Total power: 380V 50Hz 3.2KW
220V 50Hz 3.2kW
8) Weight: 600kg
9) Overall dimensions: 2,200 x
500 x 1,370mm
|
