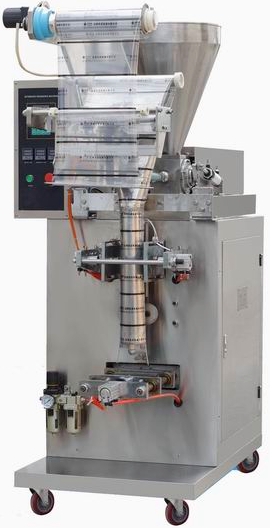

THIII-S
Macchina confezionatrice per semi liquidi, Gelatina, crème..
La macchina è stata creta ,con le migliori tecnologie, essa chiude ed
taglia , buste e bustine in 3 0 4 saldature , con la possibilità di
mettere data e piccolo diciture. Molte parti sono in acciaio
inossidabili.
THIII-S Series liquid or Paste-state Packing Machine is designed and
manufactured according to advanced science and technology in the world.
Reliable quality, high efficiency and beautiful shape are its main
characters. As regards its automatic control system, we have adopted
advanced photo electricity track planet differential compensating mode
and automatic constant-temperature control mechanism, which makes our
machine has very fast packing speed. Moreover, our machine can carry out
step less speed adjustment, and automatically finish whole packing
processes of bag making, computation, filling, sealing, cutting,
counting and heat-pressing batch number on the bag. It can be used for
various compound packing materials, which can be sealed after heating.
Descrizioni..
|
Model |
THIII-S20 |
THIII-S20-4 |
THIII-S100 |
THIII-S500 |
THIII-S1000 |
|
Product (bag/min):Produzione al minuto |
50-80 |
(25-50)*4 |
30-70 |
25-60 |
|
Packing capacity(ml):Grandezza |
5-30 |
4-50 |
250-200 |
100-1000 |
100-2000 |
|
General power(kw/v): eletricità |
1.3/220 |
2.37/220 |
1.7/220 |
1.5/220 |
1.7/220 |
|
Size of bag(mm):
Dimensioni Confezione |
Length |
50-110 |
80-150 |
50-200 |
100-250 |
|
Width |
30-80 |
50 |
70-100 |
50-160 |
100-200 |
|
Weight(kg): Peso |
350 |
400 |
500 |
|
Dimension(mm):
Dimensioni |
Length |
600 |
800 |
790 |
1002 |
Dimension(mm): |
|
Width |
790 |
700 |
600 |
860 |
|
|
Height |
1900 |
| |
|
|
|
|
|
|
|
|
THIII S20 |
THIII S500 THIII S1000 |
 |
